1/4" Captive D Shackle
$39.62
Skip to product information
In stock
1/4" Captive D Shackle
53.1403

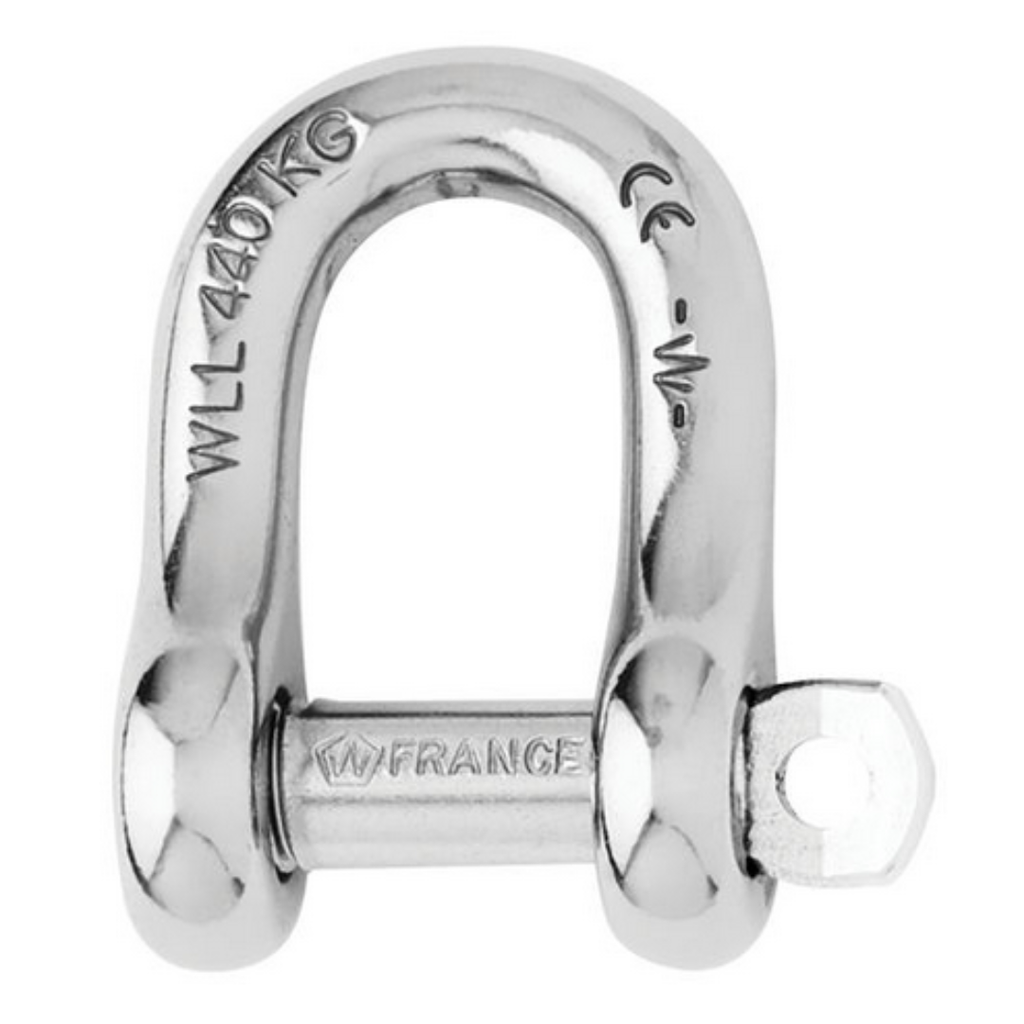

Captive pin "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads
- Materials 316 stainless steel grade
- Working load (kg) 680
- WLL (kg) 440
- Breaking load (kg) 2200
- Weight (g) 28

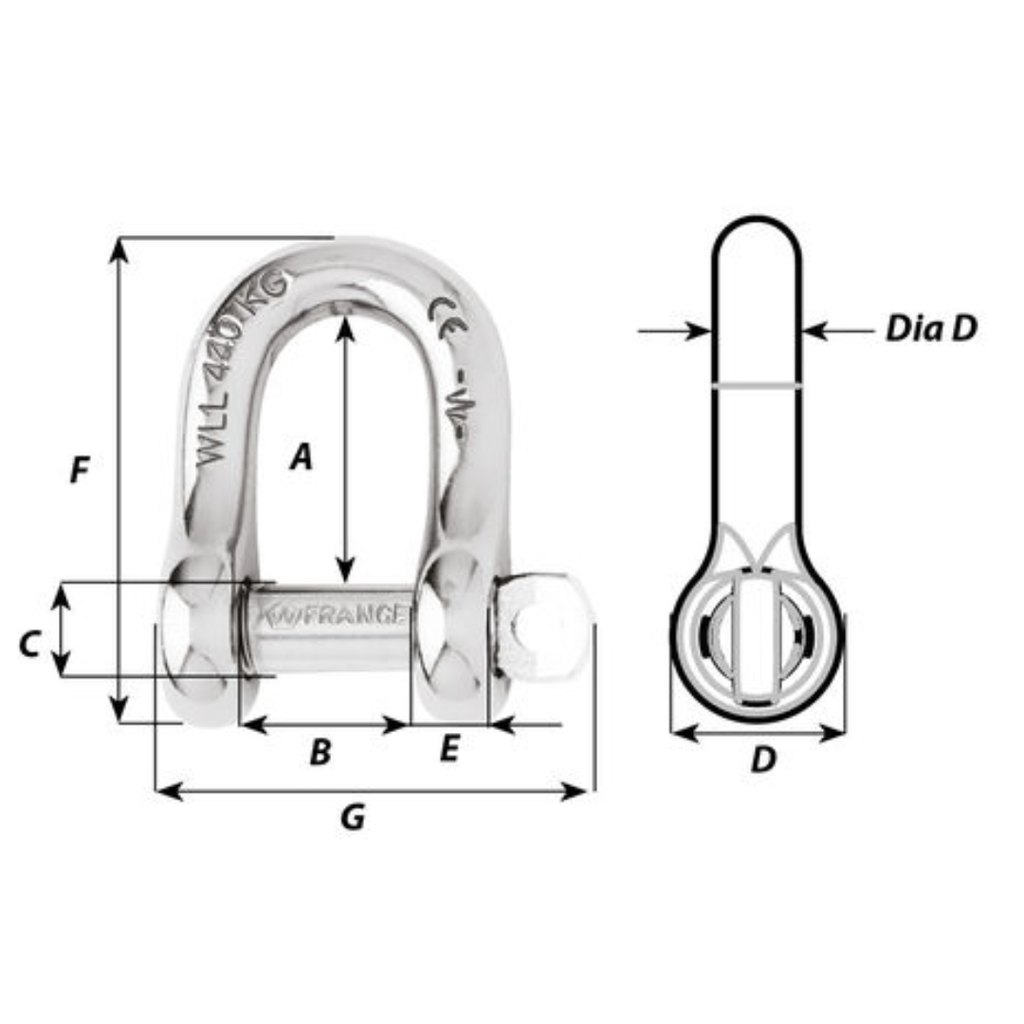

- A (mm) 20
- B (mm) 12
- C (mm) 7
- D (mm) 14
- D diameter (mm) 6
- E (mm) 6
- F (mm) 36
- G (mm) 32
$39.62
